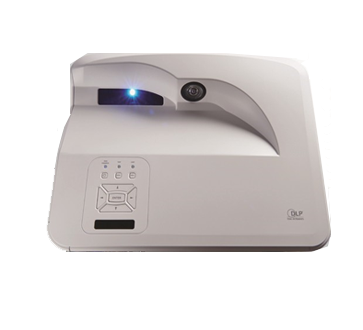

CHRISTIE CAPTIVA DHD400S

DETALHES TÉCNICOS

  • Image

  • 3500 center lumens

  • 3100 ANSI lumens

  • 3500 ISO lumens

  • 1800

    1 contrast ratio (Full on/off)
  • Display

  • 0.65” 1DLP chip

  • 1920 x 1080 (16xEPx9)

  • 80-100" diagonal image size

  • Illumination

  • Solid state (Laser phosphor)

  • 20,000 hrs

  • Signals

  • Standard

    HDMI x 2 / VGA x 1 + monitor out or VGA x 2 / VGA audio in (3.5mm phone jack) / Composite video x 1 (RCA) + audio (RCA x 2) / Microphone input / USB A (for use with optional Wireless Dongle)
  • Max input pixel rate

    1600 x 1200 @ 60Hz (162MHz) / 1920 x 1200 @ 60Hz reduced blanking (154 MHz)
  • 3D

    Frame packed/side-by-side/top and bottom 3D (HDMI 1.4a) / Frame sequential DLP link 3D (VGA/HDMI) / Frame sequential/field sequential HQFS 3D (Composite/S-Video)
  • Pixel Clock

    162 MHz
  • Inputs, control and networking

  • VGA monitor out (or second VGA in)

  • 10W speaker

  • Audio output (3.5mm phone jack)

  • RS-232 in

  • Ethernet (100BaseT) RJ45

  • Built-in keypad

  • Compatible with Crestron RoomView, AMX, PJ Link

  • Accessories

  • Standard

    IR remote / AC Line cord for projector Head / VGA cable / Camera for interactivity accessories / User manual
  • Optional

    Wall mount / IR pens / Captiva Touch (laser IR curtain)
  • Lens

  • Focus adjustment

  • 0.25xEPx1 ultra-​short throw lens

  • Fixed offset based on image size

  • Power requirements

  • Operating voltage

    100-240 VAC @ 50/60 Hz
  • Power consumption

    335W max / 225W eco mode
  • Operating current

    3.5A max
  • Dissipation

    1143 BTU/hr max / 768 BTU/hr eco mode
  • Physical

  • Audible noise

    Standard mode
  • ​Size

    (LxWxH) 12.20 x 15.08 x 4.06" (310 x 383 x 103mm) w/o feet
  • Weight

    12.1lbs (5.5 kg)
  • Shipping size

    (LxWxH) 19 x 16.5 x 12.9" (483 x 420 x 328 mm)
  • Shipping weight

    19.4lbs (8.8kg)
  • Operating environment

  • Operating temperature

    40-104°F (5-40°C)
  • Humidity (noncondensing)

    5-90%
  • Regulatory approvals

  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns

  • Directives

    RoHS / REACH / WEEE / L/CSA/IEC 60950-1 / FCC Class A / CE/ CCC / KC / PSE / VCCI / CU / BIS / RCM and SABS
  • Limited warranty

  • Three years on the projector

  • Three years or 15,000 hours on the illumination system1

  • Contact an authorized Christie representative for full details of our limited warranty
